1/2" Standard Coalescing Filter – 0.03 Micron Element, 6 oz Metal Bowl with Sight Glass, Auto Drain, 37 SCFM, 175 PSI Max
Made in USA

1/2" Standard Coalescing Filter – 0.03 Micron Element, 6 oz Metal Bowl with Sight Glass, Auto Drain, 37 SCFM, 175 PSI Max

$226.20 - $226.20
$226.20
$226.20 - $226.20
$226.20
SKU:

F554FW

The Arrow Pneumatics 1/2" Oil Removing Filter delivers premium air quality by efficiently removing oil aerosols, water mist, and fine particulate contaminants from compressed air systems. Built for 1/2" NPT piping with a flow capacity of 37 SCFM, this unit is ideal for industrial plants, automotive service centers, paint spray booths, and other applications requiring clean, dry air.

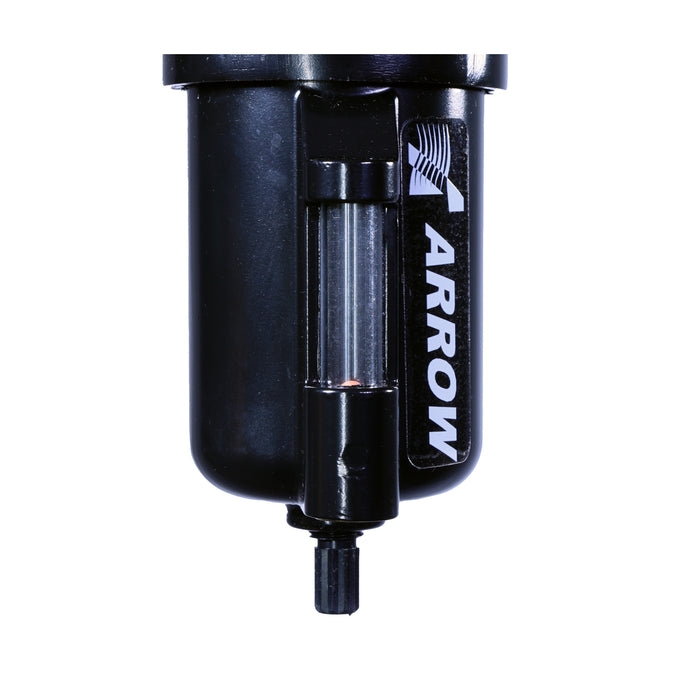

The 0.03 micron fiber element captures extremely fine contaminants, protecting critical downstream tools and machinery. A 6 oz metal bowl with a sight glass allows for easy monitoring of accumulated condensate, while the automatic drain ensures continuous removal of moisture without manual intervention.

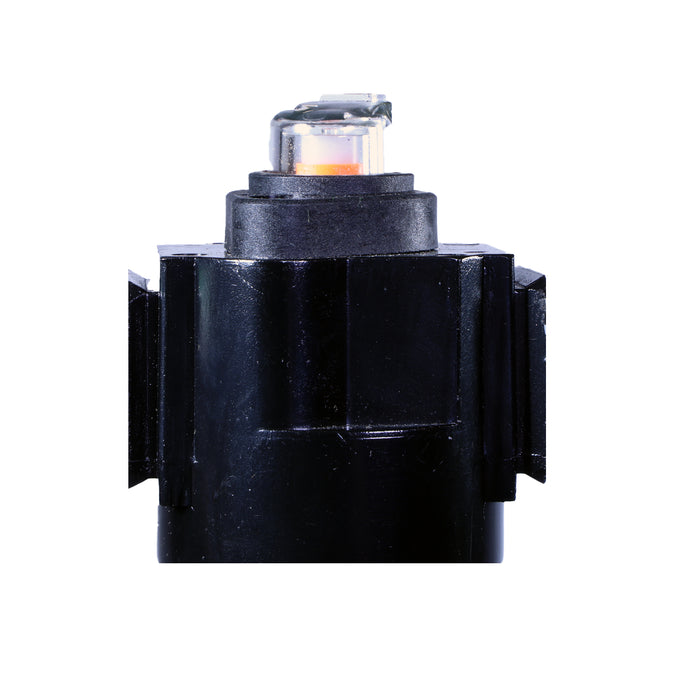

An orange pop-up indicator provides a clear visual alert when the filter element becomes clogged or flow conditions are abnormal, helping maintain system performance and minimizing downtime. With a maximum working pressure of 175 PSI and an operating range from 40°F to 120°F, this filter delivers long-lasting, dependable performance in demanding environments.

Product Features
  • Coalescing Oil-Removing Filter for Compressed Air Systems: Removes oil aerosols, moisture, and sub-micron particles—provides clean, dry air for industrial, automotive, and spray finishing systems.
  • High-Efficiency 0.03 Micron Filter Element: Captures ultra-fine contaminants to protect downstream equipment and ensure consistent air purity.
  • 6 oz Heavy-Duty Metal Bowl with Sight Glass: Durable metal construction with clear fluid level visibility—ideal for continuous-duty industrial environments.
  • Automatic Drain and Pop-Up Maintenance Indicator: Automatic condensate removal combined with an orange pop-up indicator to alert for element replacement needs.
  • Reliable Performance with Low Pressure Drop: Handles 37 SCFM at up to 175 PSI—designed for in-line or modular installations with minimal system disruption.

SPECIFICATIONS

For use with: Compressed Air
NPT: 1/2"
Sintered Bronze Filter Element Size: .03 Micron
Max Flow SCFM: 37
Operating Temp Range (Degrees): 40°F to 120°F
Manufacturers Warranty: 1 yr.
UOM: EA
Product Dimension: 2.75 in x 2.5 in x 7.63 in
Safety Compliance: F554FW
ELT: N
UL: N
FM Approved: N
ISO 610 Compliance: N
CA Proo 65: Y
Hazard Material Flag: N
SDS Indicator: N
Ozone Depleting Compounds: N
Special Permit for any mode of Transport: N
Product a Marine Pollutant: N
Can Item be sold in all States: Y
Safety Data Sheets: N
Is item safe with electronical compontes: N
Does this prodcut operate by battery, solor or electricity: N
