1/4" Mini Air Regulator with Gauge – Lightweight Nylon Body, 3-Position Locking Knob, 25 SCFM, 250 PSI Max, 5–125 PSI Range
Made in USA

1/4" Mini Air Regulator with Gauge – Lightweight Nylon Body, 3-Position Locking Knob, 25 SCFM, 250 PSI Max, 5–125 PSI Range

$51.50 - $51.50
$51.50
$51.50 - $51.50
$51.50
SKU:

R262G

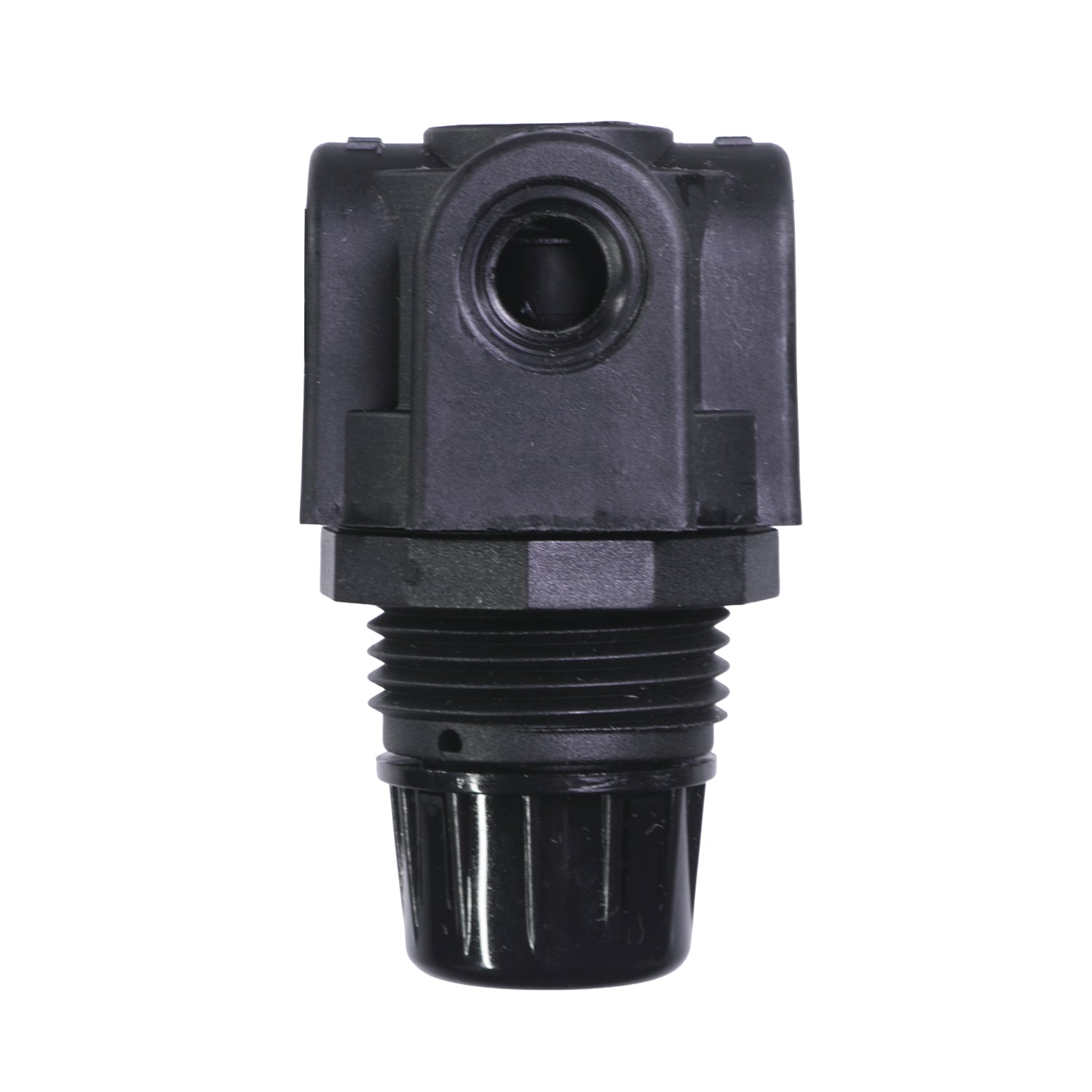

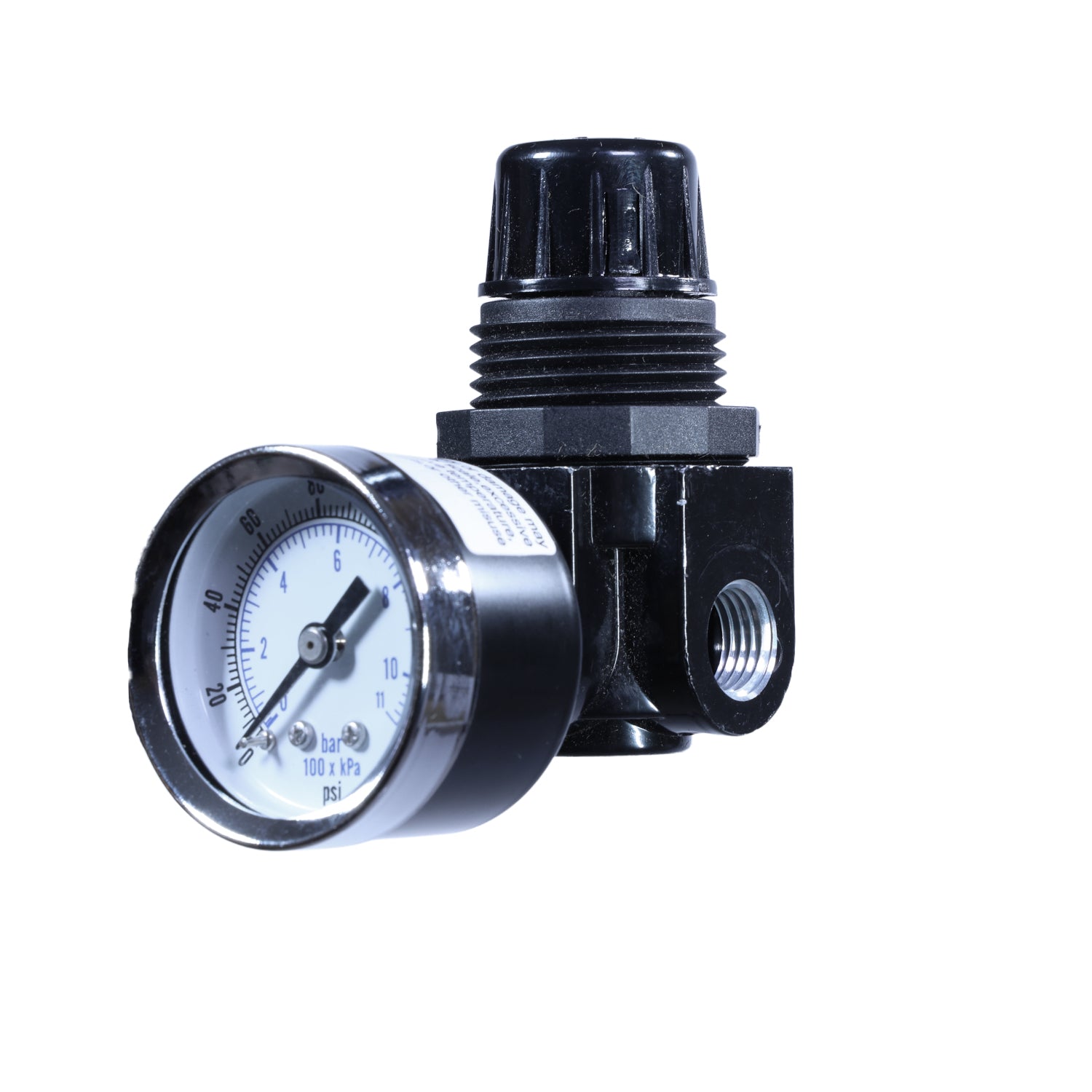

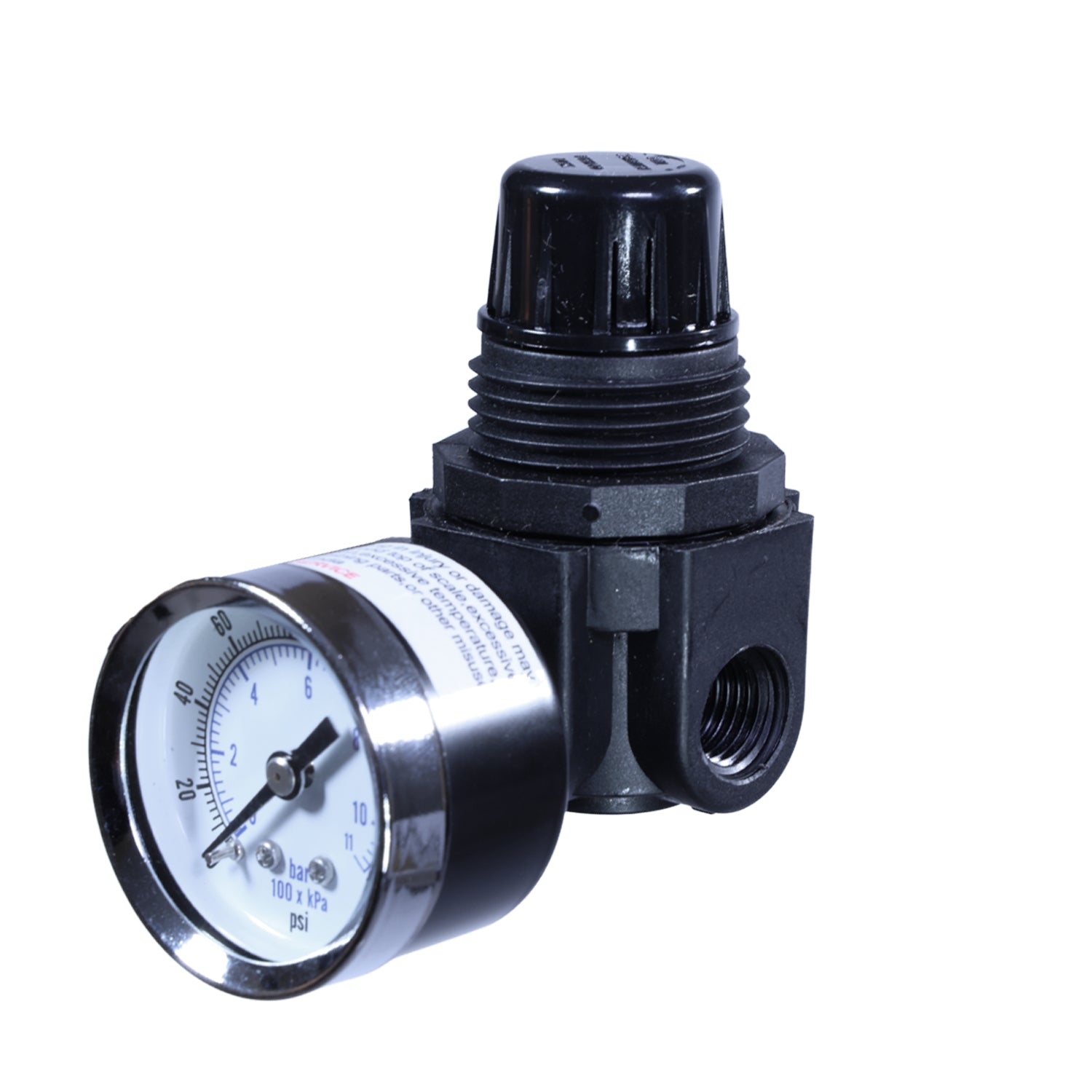

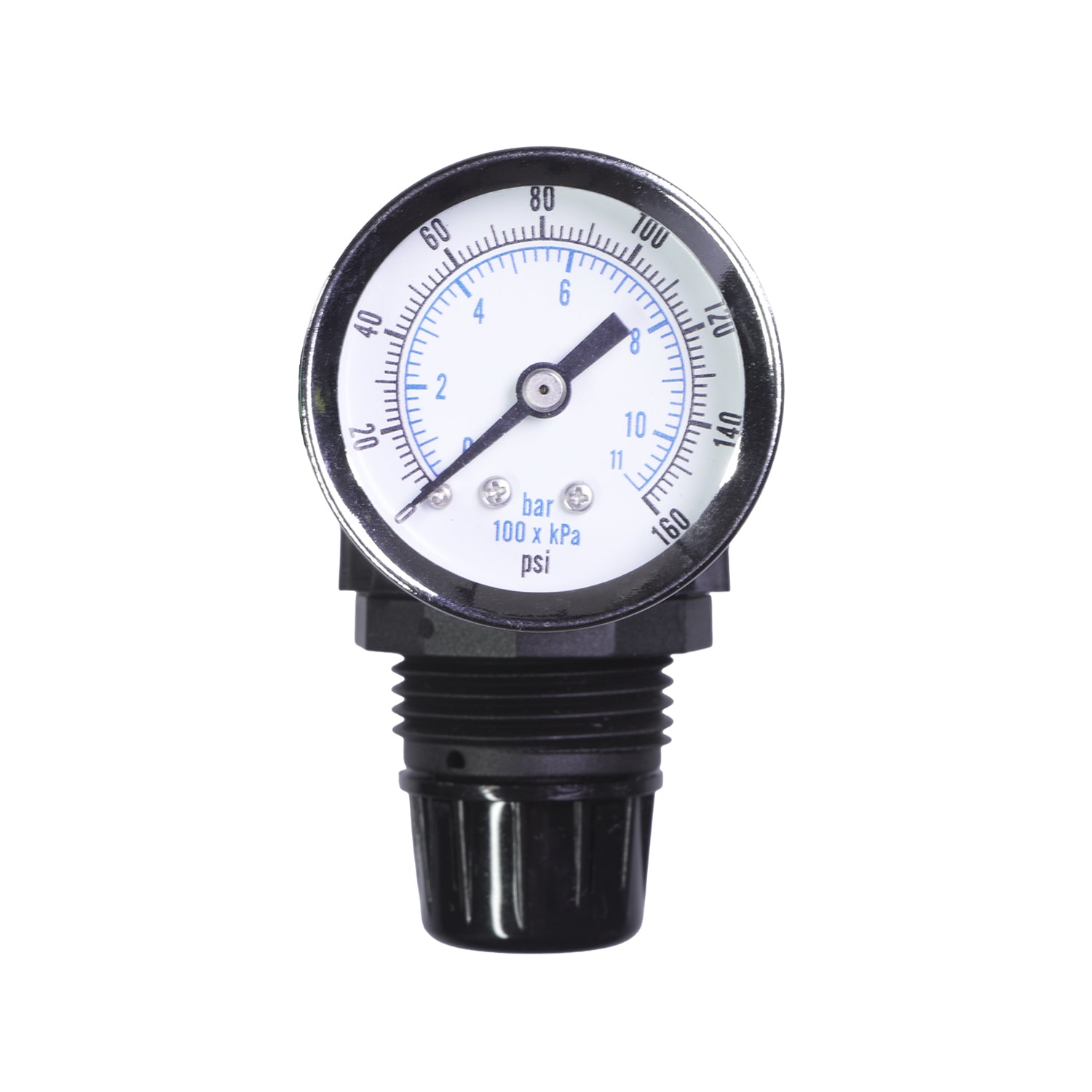

The Arrow Pneumatic 1/4" Mini Air Regulator with Gauge (Model MRG-14N) offers lightweight pressure control for small-to-medium compressed air systems. Featuring a rugged yet lightweight nylon body, this compact regulator is perfect for applications where space, portability, and performance matter.

It provides precise pressure regulation across a working range of 5–125 PSI, with a maximum pressure rating of 250 PSI and a flow capacity of 25 SCFM. The built-in pressure gauge allows for real-time monitoring, helping users quickly confirm the system is operating within optimal levels.

The 3-position non-rising knob offers secure and user-friendly operation: pull to adjust, push to lock, and detach for tamper resistance, ensuring safe use in shared or industrial settings. The self-relieving design automatically vents excess downstream pressure, while the brass valve seat ensures long-term pressure stability without drift.

Backed by replaceable internal components, this regulator is built for extended service life and field serviceability. Whether for use in workshops, mobile tool kits, or industrial machines, the Arrow Pneumatic nylon-body mini regulator delivers dependable, lightweight air control.

Product Features
  • Compact & Lightweight Design – Built with a durable nylon body for reduced weight without sacrificing strength—ideal for portable and space-constrained air systems.
  • Accurate Pressure Regulation – Maintains consistent air output from 5 to 125 PSI, allowing precise control to match tool or machinery requirements.
  • Secure 3-Position Locking Knob – Non-rising knob design with pull-to-adjust, push-to-lock, and detach-to-make-tamper-resistant functionality enhances safety and accuracy.
  • Self-Relieving with Brass Valve Seat – Automatically vents excess pressure and prevents drift, ensuring stable performance with long-term reliability.
  • Serviceable with Replaceable Parts – Designed for longevity with fully replaceable internal components to extend the life of the regulator.

SPECIFICATIONS

For use with: Compressed Air
NPT: 1/4"
Sintered Bronze Filter Element Size: na
Max Flow SCFM: 25
Knob Type: 3 position non rising
Pressure Gauge: Included
Gauge Port: 1/4"
Operating Temp Range (Degrees): 40°F to 120°F
Regulator -Adjustment Range: 5 to 125
Manufacturers Warranty: 1 yr
UOM: EA
Product Dimension: 1.5 in x 1.25 in x 2.75 in
Safety Compliance: R262G
ELT: N
UL: N
FM Approved: N
ISO 610 Compliance: N
CA Proo 65: Y
Hazard Material Flag: N
SDS Indicator: N
Ozone Depleting Compounds: N
Special Permit for any mode of Transport: N
Product a Marine Pollutant: N
Can Item be sold in all States: Y
Safety Data Sheets: N
Is item safe with electronical compontes: N
Does this prodcut operate by battery, solor or electricity: N
