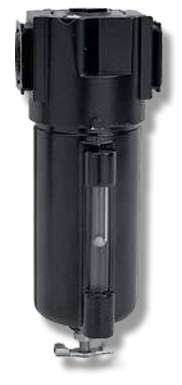

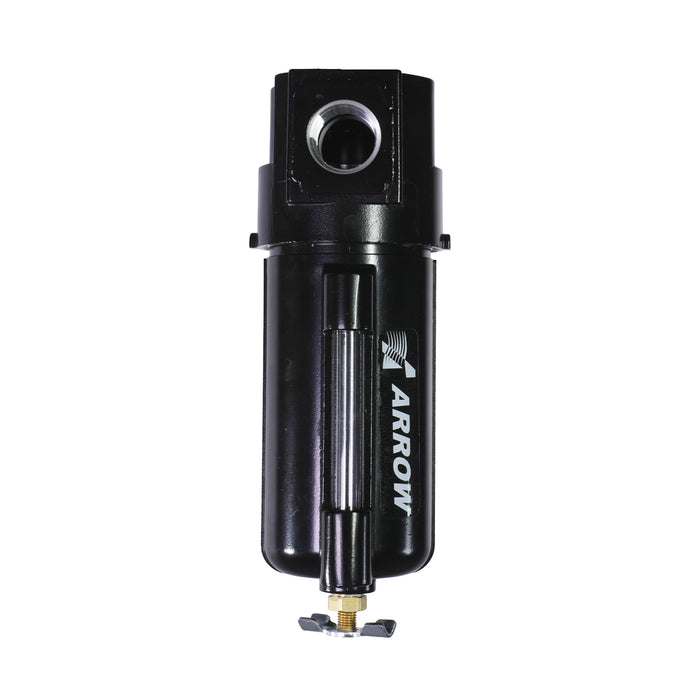

1/2" Standard Particulate Water Removing Filter – 40 Micron Sintered Bronze Element, 6 oz Metal Bowl with Sight Glass, Manual Drain, 100 SCFM, 250 PSI Max

1/2" Standard Particulate Water Removing Filter – 40 Micron Sintered Bronze Element, 6 oz Metal Bowl with Sight Glass, Manual Drain, 100 SCFM, 250 PSI Max

$96.80 - $96.80
$96.80
$96.80 - $96.80
$96.80
SKU:

F354W

The Arrow Pneumatics 1/2" Water Removing Filter provides critical protection for compressed air systems by efficiently removing water in liquid form, oil condensate, dirt, and particulates. Designed for 1/2" NPT piping and capable of handling up to 100 SCFM, it is ideal for industrial plants, auto shops, paint booths, and precision instrumentation systems where clean air is essential.

This filter features a 40 micron cleanable sintered bronze element, delivering reliable depth filtration with minimal pressure drop. The rugged 6 oz metal bowl with an integrated sight glass offers high durability and easy visual inspection of condensate levels.

Equipped with a manual drain, this model enables quick, hassle-free removal of moisture buildup. Built for demanding applications, the unit operates at pressures up to 250 PSI and temperatures between 40°F to 160°F, providing robust and reliable compressed air filtration for a wide variety of systems.

Product Features
  • Particulate and Water Removing Filter for Compressed Air Systems: Removes water, oil condensate, pipe scale, dirt, and rust—improves air system reliability and extends equipment life.
  • 40 Micron Cleanable Sintered Bronze Filter Element: Provides high-strength, depth filtration—captures fine particulates and can be cleaned and reused for extended service.
  • 6 oz Heavy-Duty Metal Bowl with Sight Glass: Durable metal bowl with integrated sight glass allows easy monitoring of condensate buildup without system disassembly.

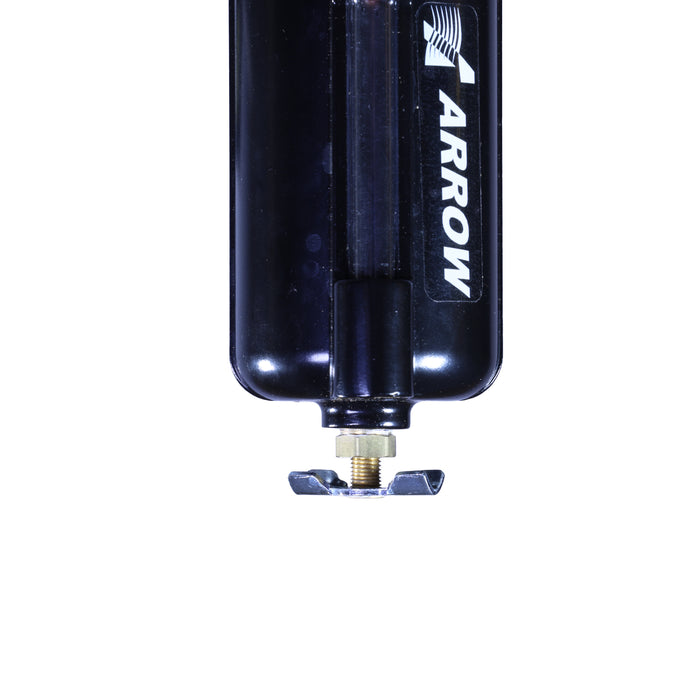

  • Easy Turn Manual Drain for Simple Condensate Removal: Quick and efficient drainage of collected moisture—supports regular system maintenance without downtime.
  • High Flow Performance with Elevated Pressure Rating: Handles up to 100 SCFM at 250 PSI—perfect for industrial, automotive, spray painting, and instrumentation air systems.

SPECIFICATIONS

For use with: Compressed Air
NPT: 1/2"
Sintered Bronze Filter Element Size: 40 Micron
Max Flow SCFM: 100
Operating Temp Range (Degrees): 40°F to 160°F
Manufacturers Warranty: 1 yr
UOM: EA
Product Dimension: 2.75 in x 2.5 in x 6.88 in
Safety Compliance: F354W
ELT: N
UL: N
FM Approved: N
ISO 610 Compliance: N
CA Proo 65: Y
Hazard Material Flag: N
SDS Indicator: N
Ozone Depleting Compounds: N
Special Permit for any mode of Transport: N
Product a Marine Pollutant: N
Can Item be sold in all States: Y
Safety Data Sheets: N
Is item safe with electronical compontes: N
Does this prodcut operate by battery, solor or electricity: N
