1/2" Desiccant Filter Dryer – 1 Gallon Capacity, Color-Changing Silica, 30 SCFM, Lowers Dew Point to -40°F, Includes Desiccant

1/2" Desiccant Filter Dryer – 1 Gallon Capacity, Color-Changing Silica, 30 SCFM, Lowers Dew Point to -40°F, Includes Desiccant

$409.30 - $409.30
$409.30
$409.30 - $409.30
$409.30
SKU:

D12-04XXL

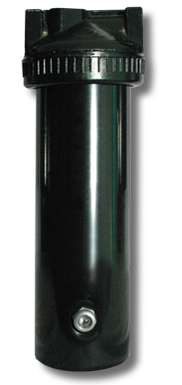

The Arrow Pneumatics D12-04XXL Desiccant Filter Dryer is the ultimate in high-capacity air drying performance for 1/2" compressed air systems. Featuring a 1-gallon desiccant capacity, this unit is built for 30 SCFM flow and delivers clean, dry air for critical applications such as paint spraying, woodworking, instrumentation, and automotive finishing.

The silica gel desiccant beads visibly change from blue to pink when saturated, providing a clear indicator for replacement. This makes system maintenance predictable and prevents downtime due to unnoticed moisture buildup. The refillable bowl design—equipped with a bottom-mounted filtration rod and secure screw collar—makes servicing fast and easy.

An integrated 40 micron sintered bronze element protects your air tools by removing fine particles and desiccant dust before they travel downstream. Designed with 1/2" NPT ports, this unit fits seamlessly into most existing air line systems.

Supplied with 1-gallon of desiccant beads, the D12-04XXL is ready to perform straight from the box, making it a go-to solution for any operation where air purity and reliability are non-negotiable.

Product Features
  • 1 Gallon High-Capacity Desiccant Dryer: Delivers dry, moisture-free air for demanding shop environments—ideal for paint booths, finish work, and industrial air tools.
  • Color-Changing Silica Beads: Beads shift from blue to pink to visually indicate saturation—ensures timely replacement for maximum drying performance.
  • Easy Maintenance Refillable Bowl Design: Bottom-mounted filtration rod and screw-on collar allow quick desiccant changes with no tools required.
  • 40 Micron Sintered Bronze Filter Element: Removes dust and desiccant particles, ensuring clean, contaminant-free air reaches your tools or spray equipment.
  • Supports 30 SCFM Flow Rate with 1/2" NPT Ports: Engineered for medium-duty air systems and includes 1 gallon of desiccant beads for long-lasting operation out of the box.

SPECIFICATIONS

For use with: Compressed Air
NPT: 1/2"
Sintered Bronze Filter Element Size: 40 Micron
Dessicant Specification: Lowers Dewpoint to -40 degrees
Max Flow SCFM: 30
Operating Temp Range (Degrees): 40°F to 160°F
Manufacturers Warranty: 1 yr.
UOM: EA
Product Dimension: 4.88 in x 5 in x 23.88 in
Safety Compliance: D12-04XXL
ELT: N
UL: N
FM Approved: N
ISO 610 Compliance: N
CA Proo 65: Y
Hazard Material Flag: N
SDS Indicator: N
Ozone Depleting Compounds: N
Special Permit for any mode of Transport: N
Product a Marine Pollutant: N
Can Item be sold in all States: Y
Safety Data Sheets: Y
Is item safe with electronical compontes: N
Does this prodcut operate by battery, solor or electricity: N
