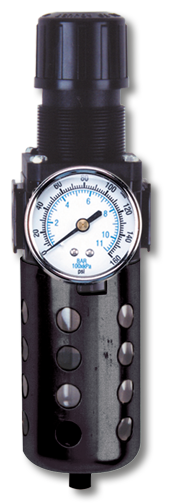

1/2" Filter/Regulator – 40 Micron Sintered Bronze Element, 5 oz Poly Bowl with Metal Guard, Manual Drain, 100 SCFM, 150 PSI Max
Made in USA

1/2" Filter/Regulator – 40 Micron Sintered Bronze Element, 5 oz Poly Bowl with Metal Guard, Manual Drain, 100 SCFM, 150 PSI Max

$164.80 - $164.80
$164.80
$164.80 - $164.80
$164.80
SKU:

B754G

The Arrow Pneumatics B754G 1/2" Filter/Regulator provides high-capacity air filtration and pressure regulation in a durable, easy-to-maintain design. Ideal for heavy-duty industrial applications, large pneumatic tools, and compressed air systems, it ensures optimal airflow quality and consistent pressure delivery.

The unit features a 40 micron sintered bronze filter element, engineered for long-lasting performance and chemical resistance, outperforming standard plastic filter elements. A 5 oz polycarbonate bowl with a metal bowl guard protects against impacts and allows for quick visual inspections, while the easy-turn manual drain simplifies routine moisture removal.

The integrated three-position adjustment knob offers secure, tamper-resistant pressure control, providing an output pressure range of 5 to 125 PSI. With a flow capacity of 100 SCFM and a maximum operating pressure of 150 PSI, the B754G is engineered to maintain system reliability under demanding conditions.

Efficient, rugged, and easy to service, the B754G is a top choice for professionals seeking clean, regulated air across large-volume compressed air applications.

Product Features
  • Integrated 1/2" Filter and Regulator System: Delivers clean, dry, and regulated air for industrial tools, spray systems, and large-scale pneumatic setups.
  • 40 Micron Sintered Bronze Filter Element: Highly durable, chemical-resistant filter removes dirt, debris, and moisture—cleanable and replaceable for extended service life.
  • 5 oz Polycarbonate Bowl with Metal Guard and Manual Drain: Impact-resistant poly bowl with protective metal guard; easy-turn manual drain simplifies maintenance and fluid removal.
  • Three-Position Non-Rising Locking Knob: Push to lock, pull to adjust, detach to tamper-proof—supports pressure output settings from 5 to 125 PSI for precise control.
  • High Flow Capacity for Demanding Applications: Handles up to 100 SCFM at a maximum operating pressure of 150 PSI—built to support high-demand air systems.

SPECIFICATIONS

For use with: Compressed Air
NPT: 1/2"
Sintered Bronze Filter Element Size: 40 Micron
Max Flow SCFM: 100
Knob Type: 3 position non rising
Pressure Gauge: Included
Gauge Port: 1/4"
Operating Temp Range (Degrees): 40°F to 125°F
Regulator -Adjustment Range: 5 to 125
Manufacturers Warranty: 1 yr.
UOM: EA
Product Dimension: 2.66 in x 2.25 in x 9.75 in
Safety Compliance: B754G
ELT: N
UL: N
FM Approved: N
ISO 610 Compliance: N
CA Proo 65: Y
Hazard Material Flag: N
SDS Indicator: N
Ozone Depleting Compounds: N
Special Permit for any mode of Transport: N
Product a Marine Pollutant: N
Can Item be sold in all States: Y
Safety Data Sheets: N
Is item safe with electronical compontes: N
Does this prodcut operate by battery, solor or electricity: N
