1/4" Filter/Regulator – 40 Micron Sintered Bronze Element, 5 oz Poly Bowl with Metal Guard, Automatic Drain, 50 SCFM, 150 PSI Max
Made in USA

1/4" Filter/Regulator – 40 Micron Sintered Bronze Element, 5 oz Poly Bowl with Metal Guard, Automatic Drain, 50 SCFM, 150 PSI Max

$228.10 - $228.10
$228.10
$228.10 - $228.10
$228.10
SKU:

B752FGW

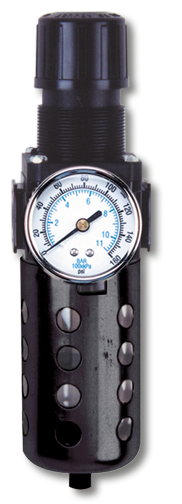

The Arrow Pneumatics B752GW 1/4" Filter/Regulator provides dependable air filtration and accurate pressure control for compressed air systems requiring enhanced durability. Built for shop environments, spray booths, and industrial air tools, it ensures clean, dry, and consistently regulated air supply.

The unit features a 40 micron sintered bronze filter element, designed to outperform and outlast plastic alternatives by resisting collapse under chemical exposure and heavy use. A 5 oz poly bowl with bowl guard allows easy fluid monitoring and is built to withstand higher impacts and temperatures compared to poly bowls. The Automatic drain provides quick, easy moisture removal without tools.

The three-position, non-rising adjustment knob allows for secure, tamper-resistant pressure setting adjustments, delivering an output range of 5 to 125 PSI. With a flow rate of 50 SCFM and a maximum pressure rating of 150 PSI, the B752GW is perfect for medium-duty air systems demanding rugged reliability.

For users needing extra durability and performance under tougher conditions, the B752GW delivers professional-grade air treatment in a compact, serviceable design.

Product Features
  • Integrated 1/4" Filter and Regulator System: Delivers clean, dry, and regulated air for industrial tools, spray systems, and large-scale pneumatic setups.
  • 40 Micron Sintered Bronze Filter Element: Highly durable, chemical-resistant filter removes dirt, debris, and moisture—cleanable and replaceable for extended service life.
  • 5 oz Polycarbonate Bowl with Metal Guard and Automatic Drain: Impact-resistant poly bowl with protective metal guard; Automatic drain simplifies maintenance and fluid removal.
  • Three-Position Non-Rising Locking Knob: Push to lock, pull to adjust, detach to tamper-proof—supports pressure output settings from 5 to 125 PSI for precise control.
  • High Flow Capacity for Demanding Applications: Handles up to 50 SCFM at a maximum operating pressure of 150 PSI—built to support high-demand air systems.

SPECIFICATIONS

For use with: Compressed Air
NPT: 1/4"
Sintered Bronze Filter Element Size: 40 Micron
Max Flow SCFM: 50
Knob Type: 3 position non rising
Pressure Gauge: Included
Gauge Port: 1/4"
Operating Temp Range (Degrees): 40°F to 125°F
Regulator -Adjustment Range: 5 to 125
Manufacturers Warranty: 1 yr.
UOM: EA
Product Dimension: 2.66 in x 2.25 in x 9.75 in
Safety Compliance: B752FGW
ELT: N
UL: N
FM Approved: N
ISO 610 Compliance: N
CA Proo 65: Y
Hazard Material Flag: N
SDS Indicator: N
Ozone Depleting Compounds: N
Special Permit for any mode of Transport: N
Product a Marine Pollutant: N
Can Item be sold in all States: Y
Safety Data Sheets: N
Is item safe with electronical compontes: N
Does this prodcut operate by battery, solor or electricity: N
