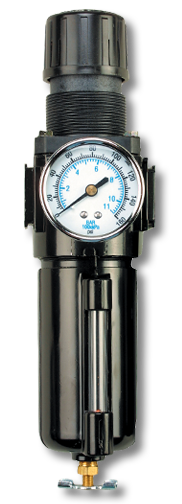

1/2" Filter/Regulator – 40 Micron Sintered Bronze Element, 6 oz Metal Bowl with Sight Glass, Automatic Float Drain, 100 SCFM, 175 PSI Max
Made in USA

1/2" Filter/Regulator – 40 Micron Sintered Bronze Element, 6 oz Metal Bowl with Sight Glass, Automatic Float Drain, 100 SCFM, 175 PSI Max

$228.10 - $228.10
$228.10
$228.10 - $228.10
$228.10
SKU:

B754FGW

The Arrow Pneumatics B754FGW 1/2" Filter/Regulator is a heavy-duty air preparation unit built to deliver clean, regulated, and moisture-free compressed air for industrial, automotive, and spray system applications.

Equipped with a 40 micron sintered bronze filter element, this model efficiently removes particulates and water in liquid form, outperforming traditional plastic filters in durability and chemical resistance. The 6 oz metal bowl includes a sight glass for quick fluid monitoring, and the Automatic Float Drain allows fast removal of collected moisture, minimizing downtime.

The regulator features a three-position non-rising adjustment knob offering tamper-proof pressure setting adjustments, allowing stable output within the 5–125 PSI range. With its 100 SCFM flow capacity and 175 PSI maximum pressure rating, the B754FGW is built for high-demand environments where clean, consistent air supply is critical.

Durable, compact, and easy to maintain, the B754FGW combines the performance of separate filter and regulator units into a single, streamlined solution that simplifies your air system setup.

Product Features
  • Integrated 1/2" Filter and Regulator System: Combines air filtration and pressure regulation into one compact unit—ideal for industrial air systems, pneumatic tools, and spray operations.
  • 40 Micron Sintered Bronze Filter Element: Captures dirt, debris, and moisture while resisting collapse and chemical damage—cleanable and replaceable for long-term reliability.
  • 6 oz Metal Bowl with Sight Glass and Automatic Float Drain: Heavy-duty metal construction with fluid visibility—Automatic Float Drain allows fast removal of collected moisture, minimizing downtime.
  • Three-Position Locking Adjustment Knob: Push to lock, pull to adjust, detach to tamper-proof—provides precise pressure control from 5 to 125 PSI.
  • High Flow Rate and Rugged Build: Supports up to 100 SCFM with a maximum pressure rating of 175 PSI—built to meet the needs of medium to heavy-duty air systems.

SPECIFICATIONS

For use with: Compressed Air
NPT: 1/2"
Sintered Bronze Filter Element Size: 40 Micron
Max Flow SCFM: 100
Knob Type: 3 position non rising
Pressure Gauge: Included
Gauge Port: 1/4"
Operating Temp Range (Degrees): 40°F to 120°F
Regulator -Adjustment Range: 5 to 125
Manufacturers Warranty: 1 yr.
UOM: EA
Product Dimension: 2.66 in x 2.25 in x 9.75 in
Safety Compliance: B754FGW
ELT: N
UL: N
FM Approved: N
ISO 610 Compliance: N
CA Proo 65: Y
Hazard Material Flag: N
SDS Indicator: N
Ozone Depleting Compounds: N
Special Permit for any mode of Transport: N
Product a Marine Pollutant: N
Can Item be sold in all States: Y
Safety Data Sheets: N
Is item safe with electronical compontes: N
Does this prodcut operate by battery, solor or electricity: N
