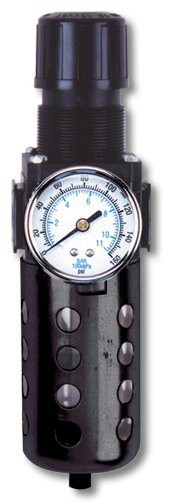

1/4" Filter/Regulator – 40 Micron Sintered Bronze Element, 5 oz Poly Bowl with Metal Guard, Manual Drain, 50 SCFM, 150 PSI Max
Made in USA

1/4" Filter/Regulator – 40 Micron Sintered Bronze Element, 5 oz Poly Bowl with Metal Guard, Manual Drain, 50 SCFM, 150 PSI Max

$164.80 - $164.80
$164.80
$164.80 - $164.80
$164.80
SKU:

B752G

The Arrow Pneumatics B752G 1/4" Filter/Regulator delivers high-efficiency particulate removal and precise pressure regulation in one streamlined unit. Perfect for compressed air systems, spray booths, and pneumatic tool operations, it ensures clean, regulated airflow while maximizing system performance.

The unit features a 40 micron sintered bronze filter element, designed to resist collapse under chemical exposure and outperform traditional polypropylene filters. A 5 oz polycarbonate bowl with a protective metal guard provides durable moisture containment, while the easy-turn manual drain allows for fast, no-hassle draining.

With a three-position non-rising adjustment knob, users can easily fine-tune or lock the desired pressure setting, supporting a pressure output range of 5 to 125 PSI. The integrated design provides performance equal to separate filter and regulator setups while saving space and simplifying installation.

Rated for 50 SCFM flow and up to 150 PSI operating pressure, the B752G is built to handle demanding shop and industrial air systems with reliability and ease.

Product Features
  • Integrated 1/4" Filter and Regulator System: Provides air filtration and pressure regulation in a compact design—ideal for protecting pneumatic tools and ensuring clean, dry airflow.
  • 40 Micron Sintered Bronze Filter Element: Durable, chemical-resistant filter element captures dirt, moisture, and debris—cleanable and replaceable for long service life.
  • 5 oz Polycarbonate Bowl with Metal Guard and Manual Drain: Impact-resistant poly bowl protected by a metal guard; easy-turn manual drain simplifies moisture removal.
  • Precise Pressure Control with Locking Knob: Three-position non-rising adjustment knob (push to lock, pull to adjust, detach to tamper-proof)—supports reduced pressure output from 5 to 125 PSI.
  • High Flow Rate and Rugged Design: Handles up to 50 SCFM and 150 PSI max operating pressure; output performance equivalent to standalone filter and regulator units.

SPECIFICATIONS

For use with: Compressed Air
NPT: 1/4"
Sintered Bronze Filter Element Size: 40 Micron
Max Flow SCFM: 50
Knob Type: 3 position non rising
Pressure Gauge: Included
Gauge Port: 1/4"
Operating Temp Range (Degrees): 40°F to 125°F
Regulator -Adjustment Range: 5 to 125
Manufacturers Warranty: 1 yr.
UOM: EA
Product Dimension: 2.66 in x 2.25 in x 9.75 in
Safety Compliance: B752G
ELT: N
UL: N
FM Approved: N
ISO 610 Compliance: N
CA Proo 65: Y
Hazard Material Flag: N
SDS Indicator: N
Ozone Depleting Compounds: N
Special Permit for any mode of Transport: N
Product a Marine Pollutant: N
Can Item be sold in all States: Y
Safety Data Sheets: N
Is item safe with electronical compontes: N
Does this prodcut operate by battery, solor or electricity: N
