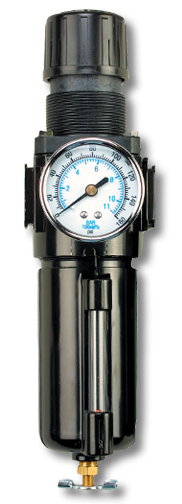

1/4" Filter/Regulator – 40 Micron Sintered Bronze Element, 6 oz Metal Bowl with Sight Glass, Manual Drain, 50 SCFM, 200 PSI Max
Made in USA

1/4" Filter/Regulator – 40 Micron Sintered Bronze Element, 6 oz Metal Bowl with Sight Glass, Manual Drain, 50 SCFM, 200 PSI Max

$181.00 - $181.00
$181.00
$181.00 - $181.00
$181.00
SKU:

B752GW

The Arrow Pneumatics B752GW 1/4" Filter/Regulator provides dependable air filtration and accurate pressure control for compressed air systems requiring enhanced durability. Built for shop environments, spray booths, and industrial air tools, it ensures clean, dry, and consistently regulated air supply.

The unit features a 40 micron sintered bronze filter element, designed to outperform and outlast plastic alternatives by resisting collapse under chemical exposure and heavy use. A 6 oz metal bowl with an integrated sight glass allows easy fluid monitoring and is built to withstand higher impacts and temperatures compared to poly bowls. The manual drain provides quick, easy moisture removal without tools.

The three-position, non-rising adjustment knob allows for secure, tamper-resistant pressure setting adjustments, delivering an output range of 5 to 125 PSI. With a flow rate of 50 SCFM and a maximum pressure rating of 200 PSI, the B752GW is perfect for medium-duty air systems demanding rugged reliability.

For users needing extra durability and performance under tougher conditions, the B752GW delivers professional-grade air treatment in a compact, serviceable design.

Product Features
  • Integrated 1/4" Filter and Regulator Unit: Combines air filtration and pressure regulation—ideal for maintaining clean, dry air in compressed air systems and pneumatic tool setups.
  • 40 Micron Sintered Bronze Filter Element: Durable, chemical-resistant element captures dirt, debris, and moisture—cleanable and replaceable for extended service life.
  • 6 oz Metal Bowl with Sight Glass and Manual Drain: Heavy-duty metal construction with sight indicator for easy fluid monitoring; easy-turn manual drain simplifies maintenance.
  • Three-Position Locking Adjustment Knob: Push to lock, pull to adjust, detach to tamper-proof—supports precise 5–125 PSI pressure regulation for diverse applications.
  • High Durability and Performance: Handles up to 50 SCFM flow and 200 PSI maximum operating pressure; output performance equals separate filter and regulator units.

SPECIFICATIONS

For use with: Compressed Air
NPT: 1/4"
Sintered Bronze Filter Element Size: 40 Micron
Max Flow SCFM: 50
Knob Type: 3 position non rising
Pressure Gauge: Included
Gauge Port: 1/4"
Operating Temp Range (Degrees): 40°F to 160°F
Regulator -Adjustment Range: 5 to 125
Manufacturers Warranty: 1 yr.
UOM: EA
Product Dimension: 2.66 in x 2.25 in x 9.75 in
Safety Compliance: B752GW
ELT: N
UL: N
FM Approved: N
ISO 610 Compliance: N
CA Proo 65: Y
Hazard Material Flag: N
SDS Indicator: N
Ozone Depleting Compounds: N
Special Permit for any mode of Transport: N
Product a Marine Pollutant: N
Can Item be sold in all States: Y
Safety Data Sheets: N
Is item safe with electronical compontes: N
Does this prodcut operate by battery, solor or electricity: N
