1/4" Mini Filter/Regulator – 20 SCFM, 20 Micron, Metal Bowl with Manual Drain, Gauge Included, 150 PSI Max
Made in USA

1/4" Mini Filter/Regulator – 20 SCFM, 20 Micron, Metal Bowl with Manual Drain, Gauge Included, 150 PSI Max

$95.10 - $95.10
$95.10
$95.10 - $95.10
$95.10
SKU:

B742GM

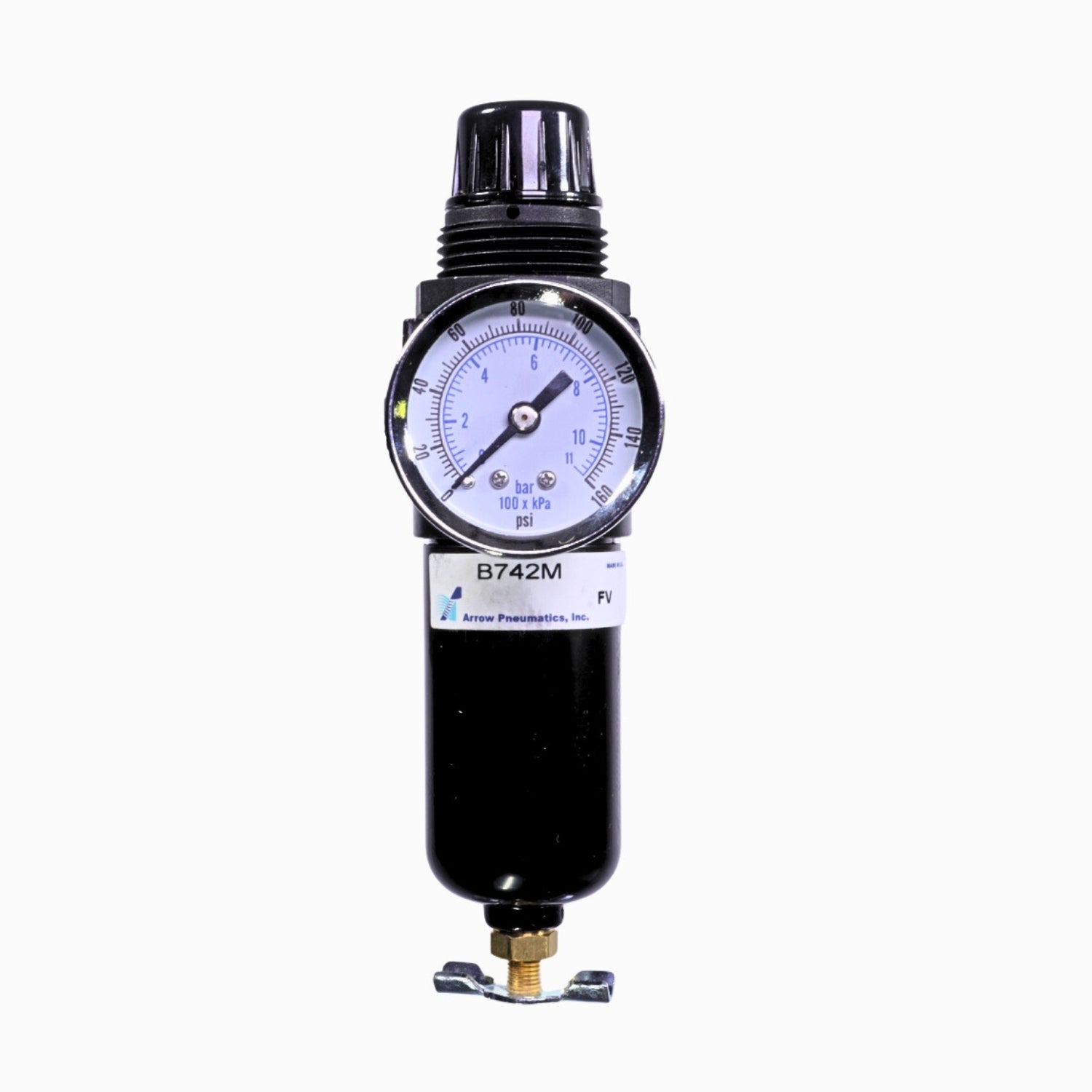

The Arrow Pneumatics B742GM Mini Filter/Regulator is a compact 1/4" combination unit designed to deliver clean, dry, and regulated air to point-of-use tools and equipment. Ideal for spray painting, small air tools, and workstation setups, this unit offers precise pressure control and effective water and particulate removal in a streamlined design.

Built to handle 20 SCFM and a maximum pressure of 150 PSI, the B742GM features a 20 micron sintered bronze filter element that captures fine particles while a 1 oz metal bowl with a manual twist drain provides easy moisture removal. The relieving-style diaphragm operation ensures smooth regulation without pressure creep.

The unit also includes a three-position, non-rising adjustment knob that locks for safety and can be detached to prevent unauthorized tampering. A tamper-proof cap and panel mounting options are included, making the B742GM a flexible solution for both mobile and stationary applications.

With a durable construction, integrated gauge, and full serviceability with replaceable parts, the Arrow Pneumatics B742GM is a reliable choice for maintaining air system performance in compact spaces.

Product Features
  • Compact Air Filter and Regulator Combination: Regulates air pressure and removes water, dirt, and debris from compressed air systems—ideal for spray guns, small tools, and compact workstations.
  • 20 Micron Replaceable Sintered Bronze Filter Element: Efficient particulate filtration protects downstream equipment—filter element is cleanable and replaceable for extended service life.
  • 1 oz. Metal Bowl with Manual Drain: Durable, lightweight metal bowl with easy manual twist drain—allows quick removal of captured moisture and debris.
  • Precision Pressure Control with Locking Knob: Features a three-position, non-rising adjustment knob (push to lock, pull to adjust, detach to tamper-proof) for stable, safe, and adjustable pressure settings.
  • Complete with Gauge and Panel Mounting Capability: Includes an easy-to-read pressure gauge and tamper-proof cap—designed for simple panel mounting and reliable shop integration.

SPECIFICATIONS

For use with: Compressed Air
NPT: 1/4"
Sintered Bronze Filter Element Size: 20 Micron
Max Flow SCFM: 20
Knob Type: 3 position non rising
Pressure Gauge: Included
Gauge Port: 1/8"
Operating Temp Range (Degrees): 40°F to 160°F
Regulator -Adjustment Range: 5 to 125
Manufacturers Warranty: 1 yr.
UOM: EA
Product Dimension: 6.25 in x 1.63 in x 1.63 in
Safety Compliance: B742GM
ELT: N
UL: N
FM Approved: N
ISO 610 Compliance: N
CA Proo 65: Y
Hazard Material Flag: N
SDS Indicator: N
Ozone Depleting Compounds: N
Special Permit for any mode of Transport: N
Product a Marine Pollutant: N
Can Item be sold in all States: Y
Safety Data Sheets: N
Is item safe with electronical compontes: N
Does this prodcut operate by battery, solor or electricity: N
