1/2" Modular Filter Regulator Lubricator – 40 Micron Filter, OSHA Lockout Slide Valve, Metal Bowls, Manual Drain, 200 PSI Max
Made in USA

1/2" Modular Filter Regulator Lubricator – 40 Micron Filter, OSHA Lockout Slide Valve, Metal Bowls, Manual Drain, 200 PSI Max

$376.20 - $376.20
$376.20
$376.20 - $376.20
$376.20
SKU:

VC33354W

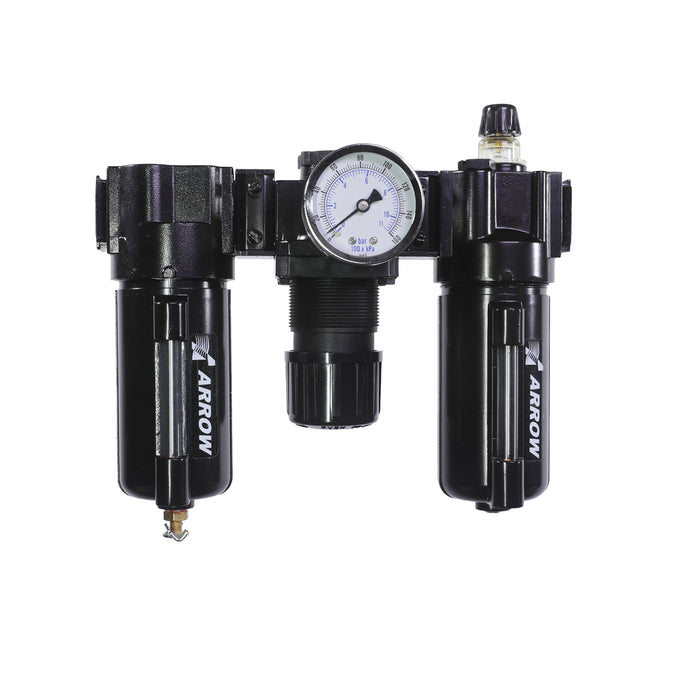

The Arrow Pneumatics 1/2" Modular Filter/Regulator/Lubricator (FRL) Unit with OSHA Lockout Slide Valve delivers compact, compliant air treatment for compressed air systems in workshops, industrial plants, and service setups. This unit combines filtration, regulation, and lubrication functions into one streamlined system, while the integrated OSHA slide valve adds a layer of safety for maintenance and shut-off operations.

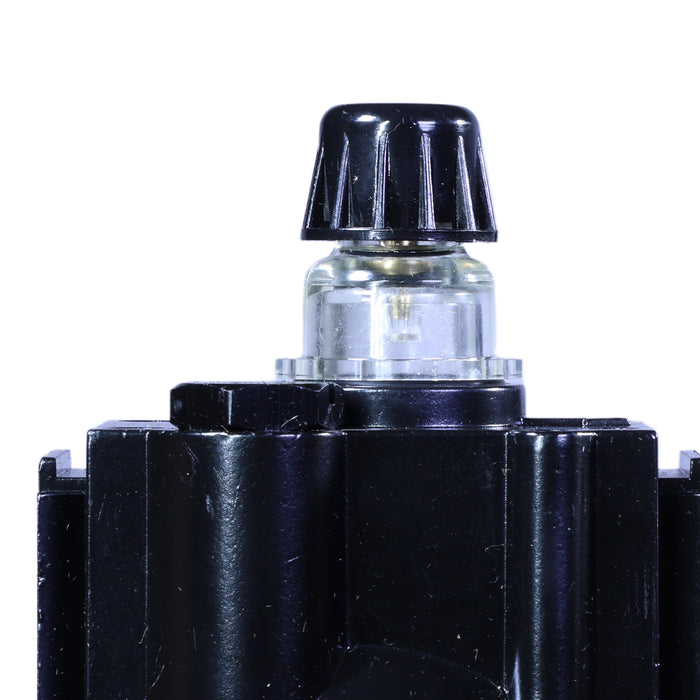

The 40 micron sintered bronze filter element captures harmful contaminants including moisture, dirt, and oil aerosols. The 6 oz. poly filter bowl and 6 oz. Arrow Fog lubricator bowl come with sight indicators and protective guards, allowing for easy fluid monitoring and improved durability.

With a manual drain for efficient moisture removal and a 3-position non-rising regulator knob, users can fine-tune and lock in air pressure with confidence. Rated for 200 PSI max, with a 5–200 PSI operating range and temperature tolerance of 40°F–150°F, this FRL is ideal for both stationary and portable applications.

Designed for serviceability, space-efficiency, and OSHA compliance, this unit is the go-to choice for operations that demand performance, safety, and reliability in one complete air management solution.

Product Features
  • Modular FRL System with OSHA Lockout Valve: Includes integrated filter, regulator, lubricator, and OSHA-compliant slide lockout valve for enhanced safety and compliance in compressed air systems.
  • 40 Micron Sintered Bronze Filter Element: Effectively removes water, oil, and debris from air lines; filter is cleanable and replaceable for long-term, efficient operation.
  • Durable Metal Bowls with Guards: Features 6 oz. filter and 6 oz. lubricator poly bowls with sight indicators and protective guards—ideal for monitoring fluid levels and ensuring safety.

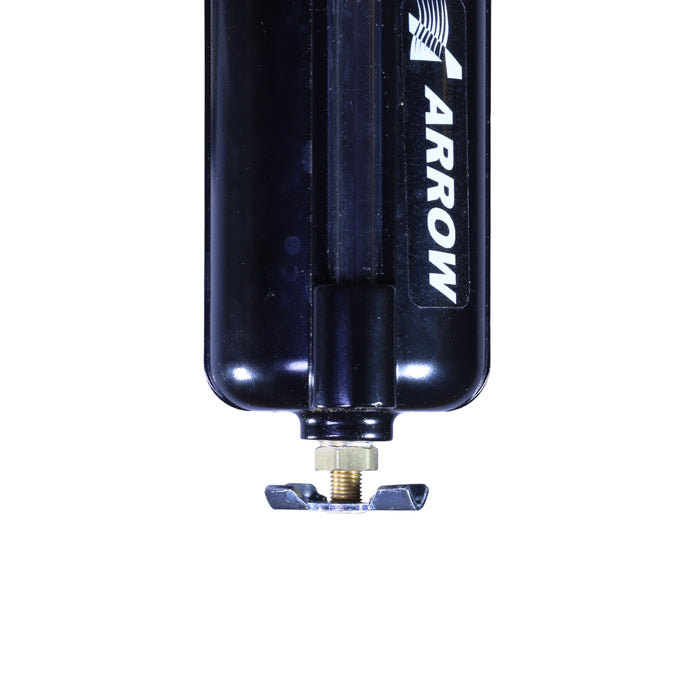

  • Manual Drain & Tamper-Resistant Regulator: Manual drain for fast servicing; regulator includes a 3-position non-rising knob for pull-to-lock, push-to-adjust, and tamper-resistant pressure control.
  • Industrial-Grade Performance in a Compact Design: Rated for 200 PSI, operating range of 5–200 PSI, and 40°F–150°F; built for shop, industrial, and mobile pneumatic systems.

SPECIFICATIONS

For use with: Compressed Air
NPT: 1/2"
Sintered Bronze Filter Element Size: 40 Micron
Max Flow SCFM: 100
Knob Type: 3 position non rising
Pressure Gauge: Included
Gauge Port: 1/4"
Operating Temp Range (Degrees): 40°F to 160°F
Regulator -Adjustment Range: 5 to 200
Manufacturers Warranty: 1 yr.
UOM: EA
Safety Compliance: VC33354
ELT: N
UL: N
FM Approved: N
ISO 610 Compliance: N
CA Proo 65: Y
Hazard Material Flag: N
SDS Indicator: N
Ozone Depleting Compounds: N
Special Permit for any mode of Transport: N
Product a Marine Pollutant: N
Can Item be sold in all States: Y
Safety Data Sheets: N
Is item safe with electronical compontes: N
Does this prodcut operate by battery, solor or electricity: N
