1/4" Standard Particulate Water Removing Filter – 40 Micron Sintered Bronze Element, 5 oz Poly Bowl with Metal Guard, Auto Drain, 48 SCFM, 150 PSI Max
Made in USA

1/4" Standard Particulate Water Removing Filter – 40 Micron Sintered Bronze Element, 5 oz Poly Bowl with Metal Guard, Auto Drain, 48 SCFM, 150 PSI Max

$128.20 - $128.20
$128.20
$128.20 - $128.20
$128.20
SKU:

F352F

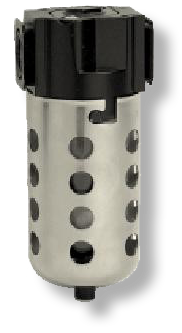

The Arrow Pneumatics 1/4" Water Removing Filter provides efficient removal of harmful water in liquid form, oil condensate, dirt, and particulates from compressed air systems, ensuring clean and dry air delivery. Built for 1/4" NPT piping and supporting up to 48 SCFM, it is ideal for industrial workshops, automotive facilities, and spray painting operations where air quality is critical.

This model features a 40 micron cleanable sintered bronze filter element, designed to capture fine particulates while maintaining a low pressure drop. The 5 oz polycarbonate bowl is reinforced with a nickel-plated steel guard for additional protection in rugged environments.

Equipped with an automatic drain, the filter continuously removes collected condensate without manual effort, reducing maintenance requirements and preventing downtime. Designed for operation at up to 150 PSI and within a 40°F to 125°F temperature range, this filter is an excellent choice for durable, high-performance compressed air filtration.

Product Features
  • Particulate and Water Removing Filter for Compressed Air Systems: Removes liquid water, oil condensate, pipe scale, dirt, and debris—protects air tools and compressed air equipment from corrosion and damage.
  • 40 Micron Cleanable Sintered Bronze Filter Element: Provides durable depth filtration—captures contaminants while offering easy cleaning and long-term performance.
  • 5 oz Polycarbonate Bowl with Nickel-Plated Steel Guard: Impact-resistant construction with metal bowl guard for enhanced durability and safety.
  • Automatic Drain for Maintenance-Free Condensate Removal: Continuously expels accumulated moisture—reduces manual maintenance and prevents downtime.
  • High Flow and Low Pressure Drop Design: Handles up to 48 SCFM at 150 PSI—ideal for in-line or modular installation in industrial, automotive, and spray painting applications.

SPECIFICATIONS

For use with: Compressed Air
NPT: 1/4"
Sintered Bronze Filter Element Size: 40 Micron
Max Flow SCFM: 48
Operating Temp Range (Degrees): 40°F to 120°F
Manufacturers Warranty: 1 yr
UOM: EA
Product Dimension: 2.75 in x 2.5 in x 6.25 in
Safety Compliance: F352F
ELT: N
UL: N
FM Approved: N
ISO 610 Compliance: N
CA Proo 65: Y
Hazard Material Flag: N
SDS Indicator: N
Ozone Depleting Compounds: N
Special Permit for any mode of Transport: N
Product a Marine Pollutant: N
Can Item be sold in all States: Y
Safety Data Sheets: N
Is item safe with electronical compontes: N
Does this prodcut operate by battery, solor or electricity: N
