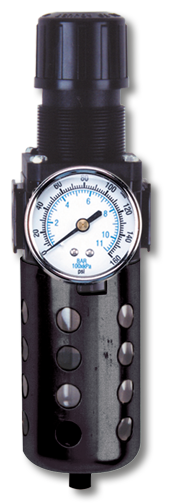

3/8" Filter/Regulator – 40 Micron Sintered Bronze Element, 5 oz Poly Bowl with Metal Guard, Manual Drain, 80 SCFM, 150 PSI Max
Made in USA

3/8" Filter/Regulator – 40 Micron Sintered Bronze Element, 5 oz Poly Bowl with Metal Guard, Manual Drain, 80 SCFM, 150 PSI Max

$164.80 - $164.80
$164.80
$164.80 - $164.80
$164.80
SKU:

B753G

The Arrow Pneumatics B753G 3/8" Filter/Regulator provides efficient air filtration and accurate pressure regulation in a compact, high-flow design. Built for industrial-grade performance, this unit ensures clean, dry, regulated air for pneumatic tools, spray equipment, and shop air systems.

Equipped with a 40 micron sintered bronze filter element, the B753G effectively removes dirt, debris, and moisture while offering superior chemical resistance and durability compared to plastic filters. A 5 oz polycarbonate bowl protected by a metal bowl guard enhances impact resistance, while an easy-turn manual drain simplifies routine maintenance.

The integrated regulator features a three-position non-rising adjustment knob, allowing users to set, lock, or tamper-proof pressure adjustments easily. The unit provides output pressure from 5 to 125 PSI, delivering the performance typically achieved with separate filter and regulator setups.

With a flow rate of 80 SCFM and maximum pressure of 150 PSI, the B753G is an excellent choice for applications needing reliable air treatment with high efficiency and ease of use.

Product Features
  • Integrated 3/8" Filter and Regulator Unit: Combines particulate filtration and pressure regulation to deliver clean, dry air for pneumatic tools, spray systems, and industrial setups.
  • 40 Micron Sintered Bronze Filter Element: Durable, chemical-resistant element captures dirt, debris, and moisture—resists collapse unlike typical plastic or polypropylene elements.
  • 5 oz Polycarbonate Bowl with Metal Guard and Manual Drain: Tough poly bowl with protective metal guard and an easy-turn manual drain for simple maintenance and fluid removal.
  • Three-Position Locking Adjustment Knob: Non-rising knob allows precise pressure control—push to lock, pull to adjust, or detach for tamper-proof setup; supports 5–125 PSI output range.
  • High Flow Capacity and Rugged Performance: Supports 80 SCFM airflow and up to 150 PSI operating pressure—ideal for medium to heavy-duty compressed air systems.

SPECIFICATIONS

For use with: Compressed Air
NPT: 3/8"
Sintered Bronze Filter Element Size: 40 Micron
Max Flow SCFM: 80
Knob Type: 3 position non rising
Pressure Gauge: Included
Gauge Port: 1/4"
Operating Temp Range (Degrees): 40°F to 125°F
Regulator -Adjustment Range: 5 to 125
Manufacturers Warranty: 1 yr.
UOM: EA
Product Dimension: 2.66 in x 2.25 in x 9.75 in
Safety Compliance: B753G
ELT: N
UL: N
FM Approved: N
ISO 610 Compliance: N
CA Proo 65: Y
Hazard Material Flag: N
SDS Indicator: N
Ozone Depleting Compounds: N
Special Permit for any mode of Transport: N
Product a Marine Pollutant: N
Can Item be sold in all States: Y
Safety Data Sheets: N
Is item safe with electronical compontes: N
Does this prodcut operate by battery, solor or electricity: N
