3/8" Filter/Regulator – 40 Micron Sintered Bronze Element, 6 oz Metal Bowl with Sight Glass, Automatic Drain, 80 SCFM, 175 PSI Max
Made in USA

3/8" Filter/Regulator – 40 Micron Sintered Bronze Element, 6 oz Metal Bowl with Sight Glass, Automatic Drain, 80 SCFM, 175 PSI Max

$228.10 - $228.10
$228.10
$228.10 - $228.10
$228.10
SKU:

B753FGW

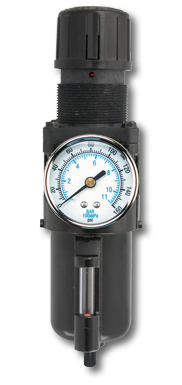

The Arrow Pneumatics B753FGW 3/8" Filter/Regulator combines high-performance air filtration and pressure regulation into one reliable, easy-to-service unit. Built to support industrial tools, spray booths, and air systems, it ensures consistently clean and regulated compressed air in demanding environments.

Featuring a 40 micron sintered bronze filter element, the B753FGW traps fine particulates and moisture while offering superior resistance to chemicals and collapse—unlike standard polypropylene filters. The 6 oz metal bowl includes a sight glass for easy visual monitoring of collected moisture, and the automatic drain simplifies system maintenance by eliminating the need for manual draining.

The regulator features a three-position non-rising knob that allows users to lock, adjust, or tamper-proof pressure settings, maintaining safe and stable operation between 5 to 125 PSI. With a flow capacity of 80 SCFM and maximum working pressure of 175 PSI, this unit is ideal for higher-flow applications requiring durability and minimal maintenance.

Designed to match or outperform individual filter and regulator setups, the B753FGW delivers professional-grade reliability and performance in a compact, efficient package.

Product Features
  • 3/8" Filter and Regulator Combination Unit: Provides clean, dry, and regulated air in a compact design—ideal for shop, industrial, and spray applications.
  • 40 Micron Durable Sintered Bronze Filter Element: Captures dirt, debris, and moisture while resisting chemical damage—long-lasting and cleanable for extended use.
  • 6 oz Metal Bowl with Sight Glass and Automatic Drain: Heavy-duty bowl with visible fluid level monitoring—automatic drain ensures hassle-free moisture removal without manual intervention.
  • Three-Position Locking Pressure Adjustment Knob: Push to lock, pull to adjust, detach to tamper-proof—delivers precise 5–125 PSI pressure control for critical air systems.
  • High-Flow Performance and Rugged Construction: Handles up to 80 SCFM with a maximum pressure rating of 175 PSI—built for medium to heavy-duty air systems.

SPECIFICATIONS

For use with: Compressed Air
NPT: 3/8"
Sintered Bronze Filter Element Size: 40 Micron
Max Flow SCFM: 80
Knob Type: 3 position non rising
Pressure Gauge: Included
Gauge Port: 1/4"
Operating Temp Range (Degrees): 40°F to 120°F
Regulator -Adjustment Range: 5 to 125
Manufacturers Warranty: 1 yr.
UOM: EA
Product Dimension: 2.66 in x 2.25 in x 9.75 in
Safety Compliance: B753FGW
ELT: N
UL: N
FM Approved: N
ISO 610 Compliance: N
CA Proo 65: Y
Hazard Material Flag: N
SDS Indicator: N
Ozone Depleting Compounds: N
Special Permit for any mode of Transport: N
Product a Marine Pollutant: N
Can Item be sold in all States: Y
Safety Data Sheets: N
Is item safe with electronical compontes: N
Does this prodcut operate by battery, solor or electricity: N
