3/8" Filter/Regulator – 40 Micron Sintered Bronze Element, 6 oz Metal Bowl with Sight Glass, Manual Drain, 80 SCFM, 200 PSI Max
Made in USA

3/8" Filter/Regulator – 40 Micron Sintered Bronze Element, 6 oz Metal Bowl with Sight Glass, Manual Drain, 80 SCFM, 200 PSI Max

$181.00 - $181.00
$181.00
$181.00 - $181.00
$181.00
SKU:

B753GW

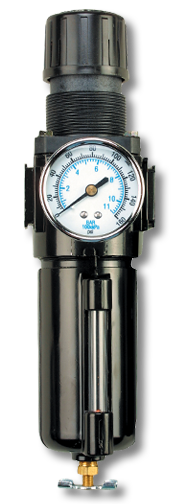

The Arrow Pneumatics B753GW 3/8" Filter/Regulator is a rugged, high-capacity unit designed to deliver dependable air filtration and pressure regulation for compressed air systems, pneumatic tools, and spray operations.

This unit features a 40-micron sintered bronze filter element that captures airborne dirt, debris, and moisture, while resisting chemical damage and maintaining long-term performance. A 6 oz metal bowl with a sight glass offers easy visual fluid inspection, and the manual drain allows fast removal of collected moisture, minimizing downtime.

The built-in regulator features a three-position non-rising adjustment knob, enabling secure, tamper-proof pressure settings with an output range of 5 to 125 PSI. With a flow capacity of 80 SCFM and a maximum operating pressure of 200 PSI, the B753GW is ideal for shop and industrial environments that demand reliable, clean, and controlled air delivery.

Compact, durable, and easy to service, the B753GW provides the performance of separate filter and regulator units in a streamlined, efficient design.

Product Features
  • Integrated 3/8" Filter and Regulator Unit: Provides clean, dry, and regulated air for pneumatic tools, spray systems, and industrial air setups in one compact solution.
  • 40 Micron Sintered Bronze Filter Element: Durable, chemical-resistant filter captures dirt, debris, and moisture—cleanable and replaceable for long-lasting performance.
  • 6 oz Metal Bowl with Sight Glass and Manual Drain: Heavy-duty metal bowl with visible fluid level monitoring; easy-turn manual drain simplifies moisture removal and routine maintenance.
  • Three-Position Locking Pressure Adjustment Knob: Push to lock, pull to adjust, detach to tamper-proof—supports stable, precise output pressure control from 5 to 125 PSI.
  • High Flow Capacity and Rugged Design: Handles up to 80 SCFM flow and 200 PSI max operating pressure—designed for demanding medium-to-heavy-duty compressed air systems.

SPECIFICATIONS

For use with: Compressed Air
NPT: 3/8"
Sintered Bronze Filter Element Size: 40 Micron
Max Flow SCFM: 80
Knob Type: 3 position non rising
Pressure Gauge: Included
Gauge Port: 1/4"
Operating Temp Range (Degrees): 40°F to 160°F
Regulator -Adjustment Range: 5 to 125
Manufacturers Warranty: 1 yr.
UOM: EA
Product Dimension: 2.66 in x 2.25 in x 9.75 in
Safety Compliance: B753GW
ELT: N
UL: N
FM Approved: N
ISO 610 Compliance: N
CA Proo 65: Y
Hazard Material Flag: N
SDS Indicator: N
Ozone Depleting Compounds: N
Special Permit for any mode of Transport: N
Product a Marine Pollutant: N
Can Item be sold in all States: Y
Safety Data Sheets: N
Is item safe with electronical compontes: N
Does this prodcut operate by battery, solor or electricity: N
