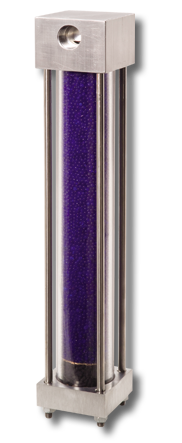

Desiccant Replacement Cartridge – For CA 20-3, 5-Stage Dryer Cartridge, Color-Changing Silica, 30 SCFM, 120 PSI Max

Desiccant Replacement Cartridge – For CA 20-3, 5-Stage Dryer Cartridge, Color-Changing Silica, 30 SCFM, 120 PSI Max

$186.80 - $186.80
$186.80
$186.80 - $186.80
$186.80
SKU:

RC30-3

The Arrow Pneumatics Desiccant Replacement Cartridge for CA 20-3 is a high-efficiency, 5-stage filter designed to maintain peak performance in your Clear Advantage air drying system. It features color-indicating silica gel beads that lower the dew point to -40°F while providing a clear visual signal—from blue to pink—to indicate when the cartridge is fully saturated and needs to be replaced.

With an integrated activated charcoal stage, this cartridge also removes oil vapor, eliminating the need for additional oil-removing filters and saving valuable space in your compressed air setup. A 40 micron sintered bronze pre-filter and 5-micron final filtration stage remove particulates and desiccant dust, protecting sensitive tools and finishes from contamination.

Built for use with 30 SCFM systems, with a maximum pressure of 120 PSI and an operating temperature range of 40°F to 125°F, this cartridge delivers consistent, reliable drying power in even the most demanding light-industrial and finishing applications.

The spin-on design makes replacement fast and tool-free, so you can keep your system running smoothly with minimal downtime.

Product Features
  • Compatible with Clear Advantage CA 20-3: Engineered as a direct replacement cartridge for the CA 20-3 dryer—ensures optimal performance and a precise fit.
  • Color-Changing Desiccant Beads: Silica beads visibly change from blue to pink to indicate saturation, making it easy to know exactly when replacement is needed.
  • Lowers Dew Point to -40°F: Removes water vapor from compressed air systems to prevent condensation and ensure dry, clean air for sensitive applications.
  • Integrated Activated Charcoal Stage: Eliminates oil vapors without requiring a separate oil-removing filter—streamlines your air treatment setup.
  • Multi-Stage Filtration with 40 Micron Bronze and 5 Micron Final Stage: Captures dust, debris, and desiccant particles to ensure ultra-clean air—ideal for paint, finish work, and instrumentation.

SPECIFICATIONS

For use with: Compressed Air
Dessicant Specification: Lowers Dewpoint to -40 degrees
Operating Temp Range (Degrees): 40 to 125
Manufacturers Warranty: 1 yr.
UOM: EA
Product Dimension: 18.75 in x 3.5 in x 3.5 in
Safety Compliance: RC 30-3
ELT: N
UL: N
FM Approved: N
ISO 610 Compliance: N
CA Proo 65: Y
Hazard Material Flag: N
SDS Indicator: N
Ozone Depleting Compounds: N
Special Permit for any mode of Transport: N
Product a Marine Pollutant: N
Can Item be sold in all States: Y
Safety Data Sheets: Y
Is item safe with electronical compontes: N
Does this prodcut operate by battery, solor or electricity: N
